Fittings-Seamless flow, high-pressure strength
At Vertex AMP Industrial Solutions,we make pipe fittings that keep your lines leak free from gentle water service up to extreme high pressure jobs. Our range covers every common style-elbows, tees, reducers, caps, crosses and stub ends for butt weld joins, plus forged socket weld and threaded elbows, tees, couplings, unions, outlets and swage nipples. Sizes run from ½″ to 48″ and pressure ratings reach 9000 psi.
Each fitting is built to international standards, cleaned for easy welding, X-rayed where critical, and pressure tested at 1.5 × its rating. Choose the material that suits your job-304/316 stainless, duplex, carbon steel or low temperature alloys. Every piece is heat number stamped and ships with a full material test certificate, so you always know exactly what you’re installing. Strong, simple and fully certified-Vertex fittings keep your flow on track.
Our Offerings For Fittings
weldable bulkhead
union tee
union coupling
tee
reducing hex nipple
reducer
reduced union coupling
quick release couplin
npt-male-thread-x-npt-female-thread-adapter
nickel alloy forged fittings
male connector
male branch tee
iso 7241 b quick connect fitting
iso 7241 a quick connect fitting
hex nipple
half coupling
full coupling
front ferrule
duplex steel forged fittings
carbon steel forged fittings
bulkhead union
bulkhead 90d elbow
bspp x npt reduced hex nipple
bspp male thread x bspp female thread adapter
boss
alloy steel forged fittings
203 series tgw quick connect fitting
203 series tgw male quick release coupling
90d union elbow
90d street elbow
90d male elbow
90d elbow
90d adjustable elbow
Pipe Fittings Specification Snapshot
| 1 | Butt‑Weld Fittings | |
|---|---|
| Parameter | Description |
| Details | Butt-weld fittings are called so because they’re welded end-to-end with the pipe, creating a strong, permanent, and leak-free joint. They’re preferred in industries where safety, pressure, temperature, and reliability are critical. Though they require skilled installation, they offer unmatched durability and performance over time. |
| Size Range | • Seamless: ¼″ NB – 24″ NB • Welded: ½″ NB – 48″ NB |
| Shapes & Pieces | Elbows (45°, 90° LR/SR) • Return (180°) • Tees (Equal / Reducing) • Reducers (Concentric / Eccentric) • Caps • Stub‑Ends • Bends • Collars • Crosses • Inserts |
| Wall Thickness | SCH 5/5S → SCH XXS or per customer specification |
| Design Code | ASME B16.9, B16.28 (latest editions) + equivalent ANSI / international standards |
| Pressure Class | Matches selected design code & schedule |
| Test Standards | Hydro, NDT, PMI, etc. as required by code |
| Ends / Finish | Plain End (PE) or Bevel End (BE) • Self‑colour, coated or capped |
| Manufacturing Routes | Cold / hot forming, extrusion, drawing, flaring • Seamless & welded construction |
| Main Materials | Stainless: ASTM A403 WP 304/L/H, 316/L, 321, 347, 310, 904L … Carbon: ASTM A234 WPB, A420 WPL3/WPL6, MSS‑SP75 WPHY 42 → 70 Alloy: ASTM A234 WP1/WP5/WP9/WP11/WP22/WP91 Special: Monel, Nickel, Inconel, Hastelloy, Copper, Brass, Bronze, etc. |
| Custom Work | Non‑standard sizes, exotic alloys, drawing‑based pieces – subject to joint approval |
| 2 | Forged Fittings (Threaded & Socket‑Weld) | |
| Details | Forged fittings are high-strength connectors made by pressing and shaping heated steel under high pressure. They’re used in high-pressure, small-bore piping systems—especially where leak-tightness and strength are critical. Depending on the need, they come in threaded or socket-weld designs, and are widely used in oil & gas, power, and process industries. |
| Size Range | ¼″ NB – 4″ NB |
| Shapes & Pieces | Elbows (45°, 90°) • Tees (F‑F / F‑M) • Unions • Crosses • Reducers • Couplings • Caps • Bushings • Plugs • Nipples • Street Elbows • Weldolets, Sockolets, Threadolets, Nippolets, etc. |
| Wall Thickness | Per ASME spec or client request |
| Design Code | ASME B16.11 (latest) + ANSI equivalents |
| Pressure Class | 3000 - 6000 - 9000 - 25000 (varies by size & material) |
| Test Standards | As per API, ANSI |
| Ends / Finish | NPT / BSP threaded, socket‑weld • Self‑colour, polished, coated, capped |
| Manufacturing Routes | Open‑ & closed‑die forging, machining, threading, socket‑welding |
| Main Materials | Stainless: ASTM A182 F 304/L/H, 316/L, 321, 347, 310, 904L … Carbon: ASTM A105 / A350 LF2 … Alloy: ASTM A182 F1/F5/F9/F11/F22/F91 Special: Monel, Nickel, Inconel, Hastelloy, Copper, Brass, Bronze, etc. |
| Custom Work | Special threads, coatings, or shapes on request |

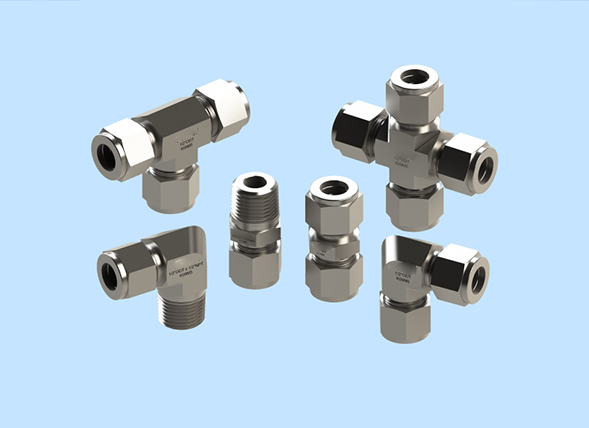

| 3 | Ferrule (Double‑Compression) Tube Fittings | |
| Details | Ferrule fittings use metal rings (ferrules) to tightly grip and seal tubes—without any welding or threading. They’re widely used in systems where cleanliness, quick assembly, high pressure, and leak-free performance are critical. Whether it's gas sampling in an oil refinery or fluid lines in a biotech lab, ferrule fittings are the go-to choice for high-integrity tube connections. |
| Size Range | ¼″ NB – 2″ NB (OD tube sizes) |
| Typical Components | Back Ferrule • Front Ferrule • Straight & M/F Connectors • Elbows • Tees • Unions • Reducers • Adaptors • Crosses • Caps • Plugs |
| Wall Thickness | To applicable tube spec or customer requirement |
| Design Codes | ISO, EN, DIN, ASME/ANSI & equivalents |
| Pressure Class | 3000 - 6000 - 9000 - 25000 (varies by size & material) |
| Test Standards | ASTM A182 / A276 / A479 or project‑specific |
| Ends / Finish | Compression (ferrule), Threaded, Welded, Flanged, Self‑colour, polished, coated, capped |
| Manufacturing Routes | Precision forging, CNC machining, compression‑assembly |
| Main Materials | Stainless steel • Copper • Brass • Carbon / alloy steels • Other ferrous & non‑ferrous alloys |
| Custom Work | Special configurations, alloy grades or surface treatments on approval |
APPLICATION INDUSTRIES
- • Oil, Gas, Petrochemical Plant
- • Chemical & Process Industry
- • Thermal and Nuclear Power Plant
- • Fertilizer Plant
- • Marine & Mining
- • Pharma Industries
- • Food & Beverages
- • Bio Gas Plant
- • Distillery Plant
- • Pulp & Paper Mill
- • Textile and Process Industries
- • Sugar Mill
