Reliable Industrial and Instrument Valves by Vertex
At Vertex AMP Industrial Solutions, we makes strong & reliable valves that help control the flow of liquids and gases in tough industrial environments. Our product range includes ball, gate, globe, butterfly, check, diaphragm, and instrument valves, available in a wide range of sizes (from ¼″ to 48″) and pressure ratings (up to Class 2500).
All our valves are made from high-quality materials like stainless steel (304/316), duplex steel, carbon steel, Titanium, Hastelloy (C-22, C-276), Inconel (Alloy 625, 718) Monel (Nickel-Copper Alloy) and special alloys. They come with features like:
- Zero-leak seats for tight shutoff
- Fire safe construction (API 607 certified) to keep valve sealed after fire
- Blow out proof stem so the stem can’t pop out under pressure
- ISO 5211 actuator pad-plug and play mounting for pneumatic or electric automation
Before delivery, every valve is pressure-tested to ensure it works perfectly under real conditions. We also provide material test certificates (EN 10204 3.1) with each product, so you always know what you're getting.
From oil refineries and chemical plants to water treatment, pharma lines, and offshore rigs, our valves are trusted for their quality, safety, and long life. When you choose Vertex, you get dependable products, fast delivery, and support from start to finish. We’re here to help you keep your flow safe and steady — every time.

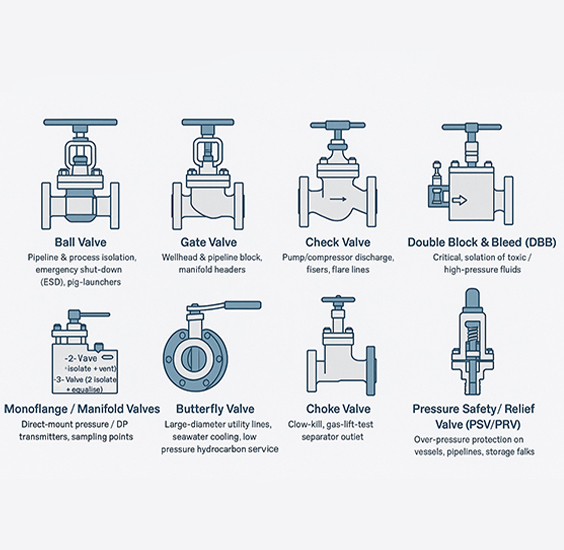

Different types of Valves offered by Vertex for Oil and Gas
Detailed Information On Our Valves Supplies
| Valve Type | Where It's Commonly Used | Why It's Important |
|---|---|---|
| Ball Valve | Used to stop or allow flow in pipelines, emergency shut-off systems, and pig launch stations | Easy to open and close quickly (¼ turn), gives a strong seal; special designs can handle high pressure and big pipelines |
| Gate Valve | Used at wellheads, pipeline systems, and manifolds | Allows full flow with very little resistance; great for tough, high-pressure and high-temperature jobs |
| Check Valve | Installed after pumps or compressors, and in risers or flare lines | Stops flow from going backwards and avoids pressure surges; options available for smooth, silent operation |
| Double Block & Bleed (DBB) Valve | Used when working with dangerous or high-pressure fluids | Offers two layers of safety by blocking flow on both sides and releasing trapped pressure for safe maintenance |
| Monoflange / Instrument Manifold Valve • 2-Valve (Stop + Vent) • 3-Valve (2 Stop + Balance) • DBB/T-Type (2 Stop + Vent) |
Used with pressure transmitters or for taking fluid samples | Combines several valves into one compact body, reducing space, weight, and chances of leaks |
| Butterfly Valve | Found in large pipelines, cooling systems, and low-pressure oil & gas services | Lightweight and fast to operate (¼ turn); special types can handle moderate pressure while sealing tightly |
| Globe (Control) Valve | Used to manage flow, pressure, or liquid levels in separators and compressors | Offers fine control over flow; special designs reduce noise and damage caused by fast-moving fluids |
| Choke Valve | Used on wellheads, gas lift systems, and test separators | Built for handling high pressure drops and rough flow conditions; made with tough materials for long life |
| Pressure Safety / Relief Valve (PSV/PRV) | Installed on tanks, vessels, and pipelines to avoid dangerous pressure build-up | Automatically opens when pressure is too high to protect equipment; easy to replace and standard in design |
| HIPPS (High-Integrity Pressure Protection System) / High-Integrity Shut-Off Valve | Protects pipelines and equipment from getting too much pressure, especially in gas fields | Closes extremely fast if pressure spikes; certified for critical safety in harsh conditions |
Valve Range & Specifications – Instrumentation & Industrial Valves
| Parameter | Details |
|---|---|
| Sizes | ½” to 2” (Instrumentation) ½” to 24” (Industrial) |
| Types Offered |
Instrumentation Valves: – Needle Valves – Ball Valves – Gauge Valves – Manifold Valves (2/3/5-way) – Double Block & Bleed (DBB) Industrial Valves: – Gate Valves – Globe Valves – Ball Valves (Floating / Trunnion) – Butterfly Valves – Check Valves – Choke Valves – Control Valves – Pressure Relief Valves – HIPPS Valves |
| Body Types | Single Piece, T-Type, R-Type, 2-Way, 3-Way, Bi-Directional |
| Operation | Manual Lever / Handwheel, Gear Operated, Pneumatic / Electric Actuated |
| Standards | ASME B16.34, BS 5352, API 598, API 6D / 6A, ISO 17292 |
| Pressure Ratings | 2000# to 6000# (Instrumentation) Class 150 to 2500 / 3000–15000 psi (Industrial) |
| End Connections | Threaded (NPT/BSP), Socket Weld, Butt Weld, Flanged |
| Material Options | SS 304, SS 316, Carbon Steel (A105), Duplex Steel, Brass, Titanium, Inconel |
| Trim Materials | SS 304 / 316 / 410, Monel, PTFE, Stellite (as per application) |
| Finish Options | Self-Color, Zinc Coated, Epoxy Painted, Pickled & Passivated |
| Manufacturing Process | Forged, Cast, or Barstock Machined |
| Customization | Available as per client drawings, specs, and international standards |
APPLICATION INDUSTRIES
- • Oil, Gas, Petrochemical Plant
- • Chemical & Process Industry
- • Thermal and Nuclear Power Plant
- • Fertilizer Plant
- • Marine & Mining
- • Pharma Industries
- • Food & Beverages
- • Bio Gas Plant
- • Distillery Plant
- • Pulp & Paper Mill
- • Textile and Process Industries
- • Sugar Mill
